Description

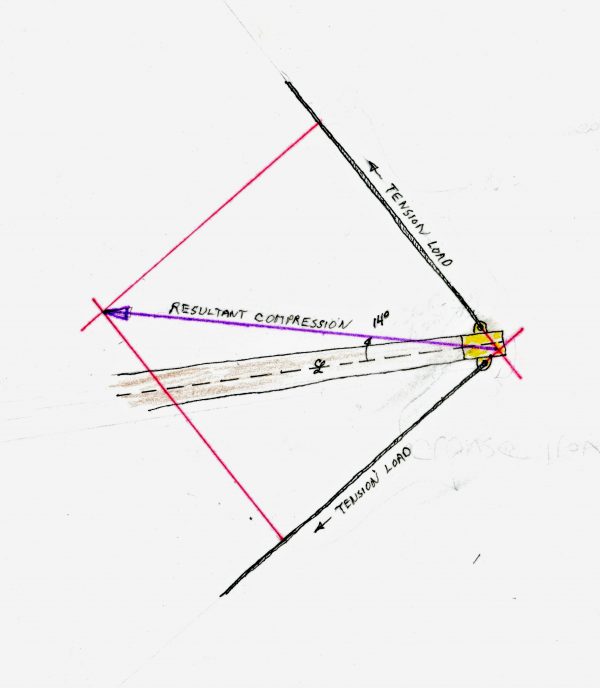

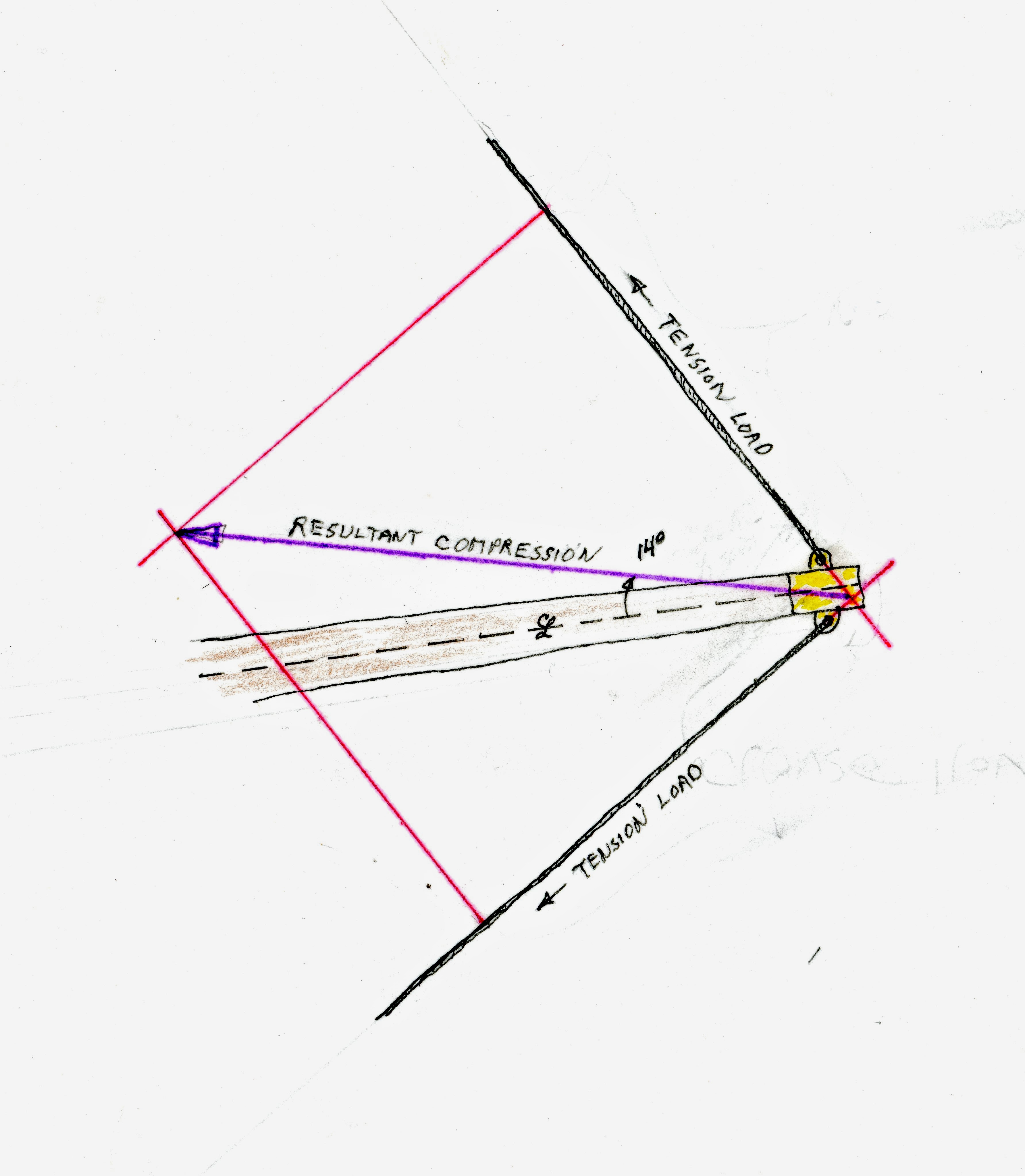

This article shows how to calculate the amount and direction of the resultant force from two different loads on a point using just a straightedge and a pair of dividers. This is an ancient application of graphic, non-algebraic geometry to a problem commonly encountered in the rigging of sailboats. It is also useful in resolving the load forces presenting in carpentry and furniture structures.
